Tool Shrinkage fitting/Extraction D　I　A　G　R　A　M

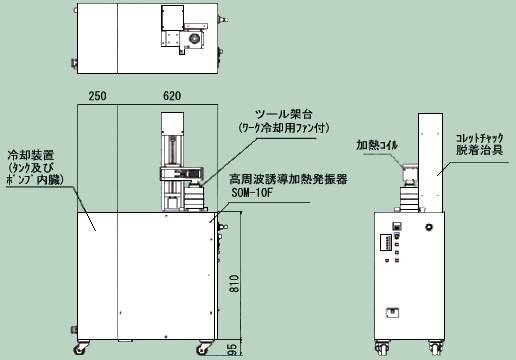

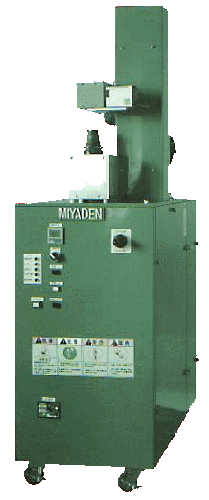

Shrinkage fitting/Extraction-MainBody Shrinkage fitting/Extraction-Dimension
　STANDARD SPECIFICATIONS

POWER SOURCE/
VOLTAGE
[V]

INPUT
[KVA]		 OUTPUT
[KW]		 OSCILLATING
MOTHOD		 FREQUENCY
[KHz]		 WORK
MAX/MIN
DIAMETER		 SHRUNK
ACCURACY
[μm]		 COOLING UNIT

AC200/220
 3φ
 50/60Hz

14 10 Separate
Excitation		 10 φ3〜φ25 5 STANDARD
※The specifications are subject to change without prior notice　　　　　　　.
　 　 　 　
　 　
